Product Details:
|
| Voltage: | 24-48V | Power: | 100-300W |
|---|---|---|---|
| Speed: | 75/120/160（rpm） | Type: | PMDC Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | 24V brushed dc geared motor,micro dc gear motor 100w,micro dc gear motor 300w |
||

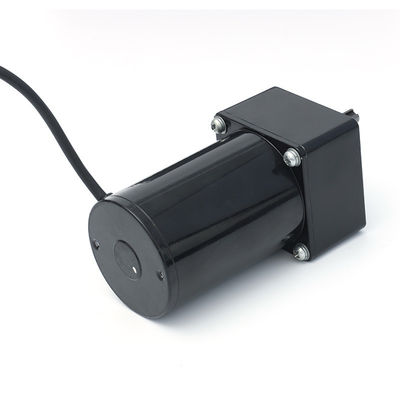

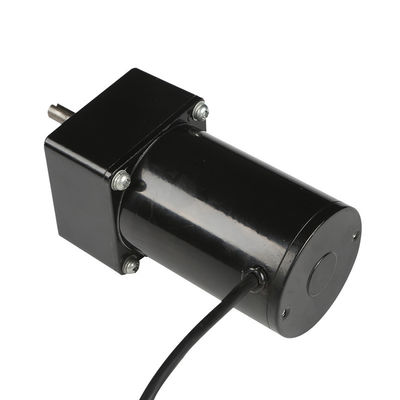

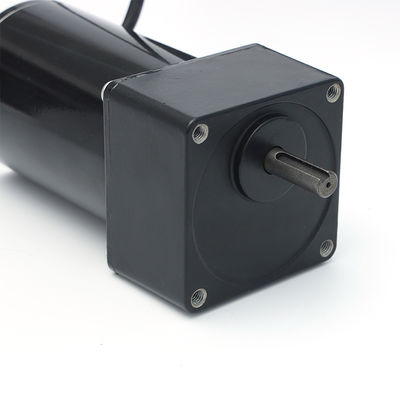

24V brushed reduction 80JB+76ZYT micro DC gear motor for high-power outdoor advertising
Introduction
This is a permanent magnet brushed DC motor with planetary gearbox, power range 30-500W use in automatic license plate recognition, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:30-300W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/100V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| Model | 1/10 | 1/15 | 1/20 | 1/25 | 1/40 | 1/75 | 1/100 | 1/150 | 1/180 | VDC RATED VOLTAGE | A NO LOAD CURRENT | A RATED CURRENT | L mm |
| 3.2 | 4.8 | 5.2 | 6.4 | 8.0 | 12 | 12 | 12 | 12 | |||||
| 76ZYT001J1000 | 100 | 66 | 50 | 40 | 25 | 13 | 10 | 7 | 6 | 24 | ≤0.8 | ≤3 | 155 |
| 76ZYT001J2000 | 200 | 133 | 100 | 80 | 50 | 26 | 20 | 13 | 11 | 24 | ≤1.3 | ≤5. 5 | 155 |
| 76ZYT001J3000 | 300 | 200 | 150 | 120 | 75 | 40 | 30 | 20 | 16 | 24 | ≤1.7 | ≤7. 5 | 155 |
| 76ZYT001J4000 | 400 | 266 | 200 | 160 | 100 | 52 | 40 | 26 | 24 | 24 | ≤2.1 | ≤10 | 155 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
FAN
Home Appliance
Channel gate
AC /DC Geared Motor Applications
What are the uses of the dc gear motor? The brush dc gear motor combines the advantages of the brush motor and the reduction motor. It converts the electric energy of the brush device into mechanical energy (motor) or mechanical energy into electrical energy (generator). It also uses the speed converter of the gear to reduce the number of revolutions of MADA to the required number of revolutions and obtain a larger torque. The DC brush gear motor is the basis of all motors. It has fast starting The brake is timely, the speed can be adjusted smoothly in a large range, and the control circuit is relatively simple. Our DC brush reduction motor will be applied to chemical industry, printing and dyeing industry, textile industry, pharmaceutical industry, electrical equipment, robots and other fields.
