B42JBX Planetary AC DC Gear Motor Brushless DC24v 30W For Medical Syringe Pump

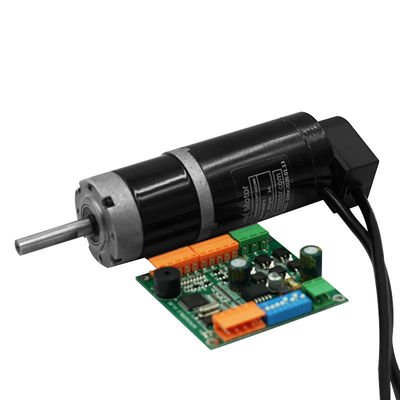

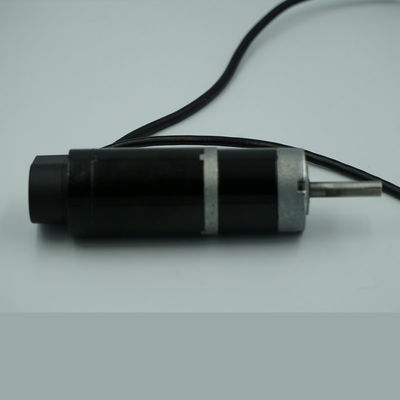

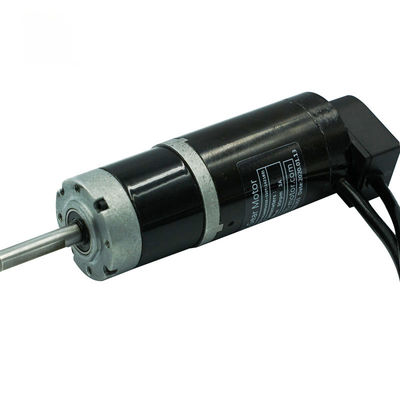

B42JBX DC24v 30W brushless geared motor with planetary gearbox for medical syringe pump

Introduction

This is a brushless DC motor with planetary gearbox, power range 20-100W use medical equipment, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.

Quick Details

Type: AC DC gear motor

Output Power:20-100W

Certification:CCC, CE, ROHS

Protect Feature:Totally Enclosed

Voltage:24/36 V

Insulation:Class B

Warranty:3months-1year

Place of Origin: China

Specification

Application

Outdoor advertising

Medical equipment

Mechanical equipment

BOAT

Electric Bicycle

FAN

Home Appliance

Channel gate

AC /DC Geared Motor Applications

The brushless DC geared motor has three Hall-effect positioning sensors. Since the brushless motor has no carbon brushes and no associated interfaces, the design shape is clean and clean, and the noise is low, no maintenance is required, and the life is longer. Brushless DC motor usually the rotor magnetic pole adopts tile magnet, after the magnetic circuit design, the air gap magnetic density of the trapezoidal wave can be obtained, and the stator winding mostly adopts a concentrated integer winding, so the induced back EMF is also trapezoidal wave.

The control of brushless DC geared motor requires position information feedback, and there must be a position sensor or adopt positionless sensor estimation technology to constitute an automatic speed regulation system. During the control, the current of each phase is controlled into a square wave, and the inverter output voltage is controlled according to the method of PWM of the brushed DC motor.
