70JBX AC DC Gear Motor 20-100W BLDC 24v Planetary For Electric Glass Doors And Windows

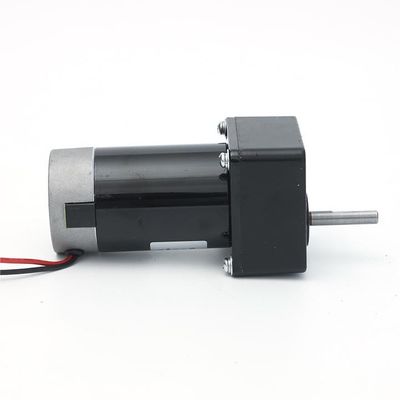

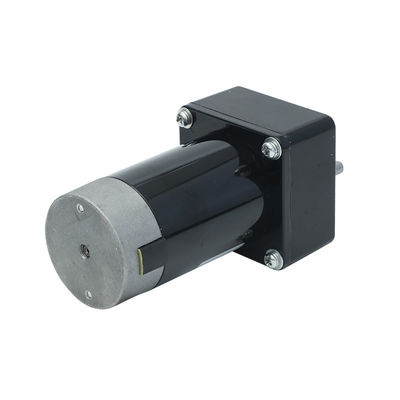

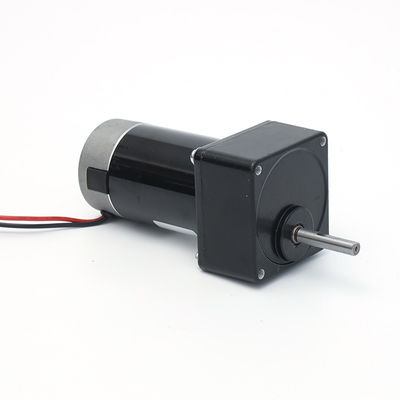

70JBX DC24v 20-100W brushless geared motor with planetary gearbox for electric glass doors and windows

Introduction

This is a brushless DC motor with planetary gearbox, power range 20-100W use for precision control equipment, medical equipment, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.

Quick Details

Type: AC DC gear motor

Output Power:20-100W

Certification:CCC, CE, ROHS

Protect Feature:Totally Enclosed

Voltage:24/36 V

Insulation:Class B

Warranty:3months-1year

Place of Origin: China

Specification

Application

Outdoor advertising

Medical equipment

Mechanical equipment

BOAT

Electric Bicycle

FAN

Home Appliance

Channel gate

More information of AC /DC Geared Motor

The role of gear reduction motors

The gear reduction motor is simply explained as reducing the deceleration, increasing the torque, and improving the required driving effect; However, the power of the reducer cannot be exceeded, and the inertia of the load is reduced while decelerating, and the inertia is reduced to the square of the reduction ratio. When purchasing gear reducers, the inertia value should be looked at. The main functions of the gear reducer:

1. It can accelerate and decelerate at the same time, which is often called a variable speed gearbox.

2. Changing the driving direction, such as worm gear drive, can transfer the torque vertically to another rotating shaft.

3. Change the torque. Under the same power conditions, the faster the gear, the smaller the torque and the greater the noise of the shaft, and vice versa, the greater the torque, the smaller the noise.
