Product Details:
|
| Voltage: | 24-48V | Power: | 20-200W |
|---|---|---|---|
| Speed: | 40/75/120/160（rpm） | Type: | PMDC Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | 70jb miniature gear motor,miniature gear motor 24v,48v low noise gear motor |
||

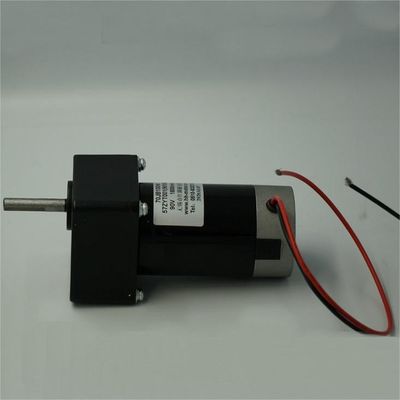

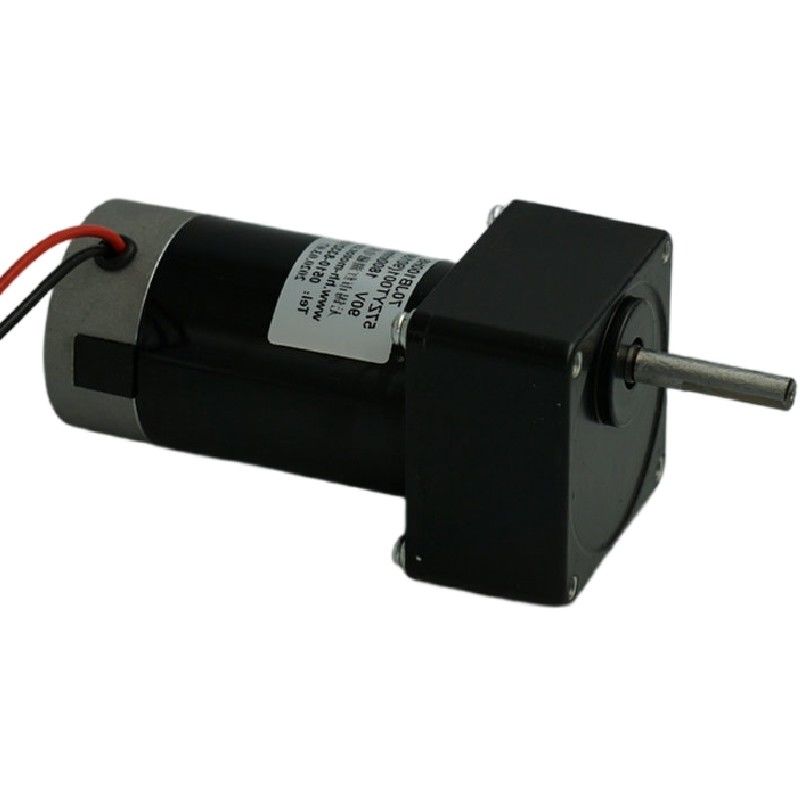

70JB DC 24V Low Noise Miniature DC geared motor for logistics transmission
Introduction
This is a PMDC motor with planetary gearbox, power range 20-100W use for precision control equipment, medical equipment, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: AC DC gear motor
Output Power:20-100W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| Ratio | 1/10 | 1/15 | 1/20 | 1/25 | 1/40 | 1/75 | 1/100 | VDC | A | A | L |
| N.m | 1 | 1.2 | 1.6 | 2 | 3.2 | 5.5 | 7.5 | RATED VOLTAGE | NO LOAD CURRENT | RATED CURRENT | mm |
| Model | Speed | ||||||||||
| 55ZYN001J1000 | 100 | 66 | 50 | 40 | 25 | 13 | 10 | 24 | ≤0.15 | ≤0.7 | 106 |
| 55ZYN001J2000 | 200 | 133 | 100 | 80 | 50 | 26 | 20 | 24 | ≤0.2 | ≤1.3 | 106 |
| 55ZYN001J3000 | 300 | 200 | 150 | 120 | 75 | 40 | 30 | 24 | ≤0.4 | ≤2.7 | 106 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
FAN
Home Appliance
Channel gate
More information of AC /DC Geared Motor
The role of gear reduction motors
The gear reduction motor is simply explained as reducing the deceleration, increasing the torque, and improving the required driving effect; However, the power of the gear motor cannot be exceeded, and the inertia of the load is reduced while decelerating, and the inertia is reduced to the square of the reduction ratio. When purchasing gear motors, the inertia value should be looked at. The main functions of the gear motor:
1. Clutch function: We can achieve the purpose of separating the engine from the load by separating the two originally meshing gears. Such as brake clutches, etc.
2. Distribution power, multi-stage gear meshing, can distribute the power direction, for example, we can use one engine, through the gearbox spindle to drive multiple slave shafts, thereby improving the function of one engine driving multiple loads.
With the development of all walks of life, the role of gear reducer motor is getting more and more, and the role is getting bigger and bigger; If you have any needs, please contact our Mechanical and Electrical Engineer, we will answer you as soon as possible.
