Product Details:
|
| Voltage: | 24-48V | Power: | 50-200W |
|---|---|---|---|
| Speed: | 20/75/120/160（rpm） | Type: | BLDC Motor |
| Torque: | 1.5-200 | IP: | 20/44 |
| Warranty: | 1 Year | Origin: | China |
| Highlight: | 50W brushless dc gear motor,200W brushless dc gear motor,BLDC planetary gear motor 24v |
||

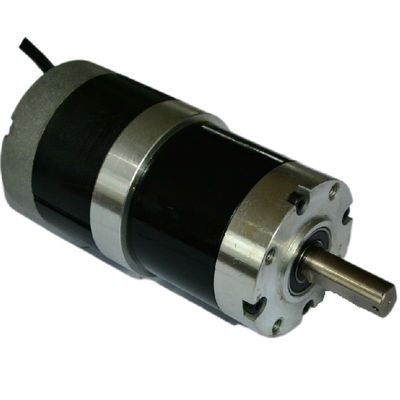

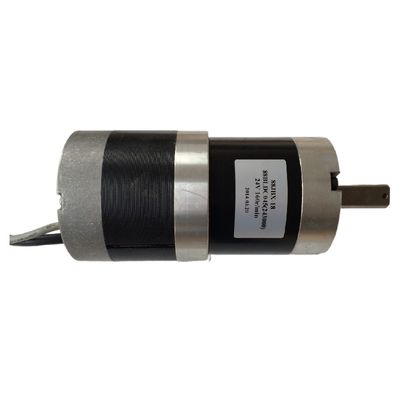

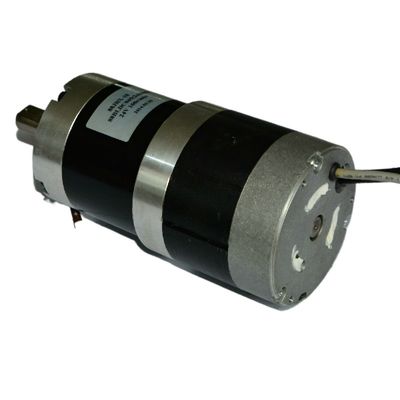

80JBX DC24V 50-200W brushless geared motor with planetary gearbox for Precision control textile equipment
Introduction
This is a brushless DC motor with planetary gearbox, power range 50-200W use for precision control textile equipment, medical equipment, barrier system, intelligent turnstile and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: AC DC gear motor
Output Power:50-200W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No load | Rated load | Torque | Ratio | Power | Length | ||
| A CURRENT | rpm SPEED |
A CURRENT | rpm SPEED |
N. m | W | mm | |||
| 80JBX-X88BLDC045 | 24 | 1.97 | 686 | 11.79 | 583 | 3.1 | 4.29 | 188 | 140.5 |
| 80JBX-X88BLDC045 | 24 | 1.97 | 568 | 11.79 | 483 | 3.7 | 5.18 | 188 | 140.5 |
| 80JBX-X88BLDC045 | 24 | 1.97 | 436 | 11.79 | 370 | 4.9 | 6.75 | 188 | 140.5 |
| 80JBX-X88BLDC045 | 24 | 2.18 | 160 | 11.79 | 136 | 11.9 | 18.37 | 170 | 162 |
| 80JBX-X88BLDC045 | 24 | 2.18 | 102 | 11.79 | 86 | 18.7 | 28.93 | 170 | 162 |
| 80JBX-X88BLDC045 | 24 | 2.18 | 84 | 11.79 | 71 | 22.7 | 34.98 | 170 | 162 |
| 80JBX-X88BLDC045 | 24 | 2.43 | 37 | 11.79 | 32 | 45.9 | 78. 72 | 153 | 183.5 |
| 80JBX-X88BLDC045 | 24 | 2.43 | 20 | 11.79 | 17 | 87.4 | 149.90 | 153 | 183.5 |
| 80JBX-X88BLDC045 | 24 | 2.43 | 12 | 11.79 | 11 | 137.7 | 236.1 | 153 | 183.5 |
| 80JBX-X88BLDC045 | 24 | 2.70 | 6 | 11.79 | 5 | 278.9 | 531.34 | 137 | 205 |
| 80JBX-X88BLDC045 | 24 | 2.70 | 4 | 11.79 | 3 | 439.3 | 836.86 | 137 | 205 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
FAN
Home Appliance
Channel gate
More information of AC /DC Geared Motor
DC geared motor can provide lower speed and larger torque in use, greatly improve the utilization rate, and it has a variety of types and specifications of products, but also can meet the production needs of different industries, its uses and characteristics are as follows.
DC geared motors are widely used in the steel industry, machinery industry, etc., in the field of financial equipment, office equipment, electronic locks, remote control toys, precision instruments, automotive fields, medical equipment, consumer electronics, household appliances, electric glass doors and windows, etc. are also used.
DC gear motor advantages:
1. Good starting and speed regulation performance, wide and smooth speed regulation range, strong overload capacity, and little influence by electromagnetic interference;
2. It has good starting characteristics and speed regulation characteristics;
3. The torque of DC geared motor is relatively large;
4. Maintenance is relatively cheap;
5. DC is energy-saving and environmentally friendly compared to AC.
